Timeout Notification Listener

Java Class​

org.camunda.bpm.extension.hooks.listeners.task.TimeoutNotifyListener

This listener sends an email reminder one day before the task due date and an escalation email the day after the due date.

Type​

Task Listener

How it Works​

This listener is intended to be used only when a task has a due date. It relies on the following listener field parameters:

(1) escalationGroup (name: escalationGroup, type: expression, value: name of the group, Mandatory = Yes ) (2) messageName (name: messageName, type: expression, value: messageName, Mandatory = Yes ) messageName refers to the message name from notification_email.bpmn

The listener should be configured on the task's timeout event with a desired timer definition.

Upon configuration:

  • Reminder (1 day before due date):

    For assigned tasks, the reminder is sent to the user. For unassigned tasks, the reminder is sent to the group.

  • Escalation (1 day after due date):

    For both assigned and unassigned tasks, the email is sent to the configured escalationGroup.

Note: This component uses the notification_email.bpmn process and recognizes only the reserved categories activity_reminder and activity_escalation.

How to Use​

The snapshots below show how TimeoutNotifyListener can be configured for a task's timeout event.

TimeoutNotifyListener configured on task timeout with fields for notification:​

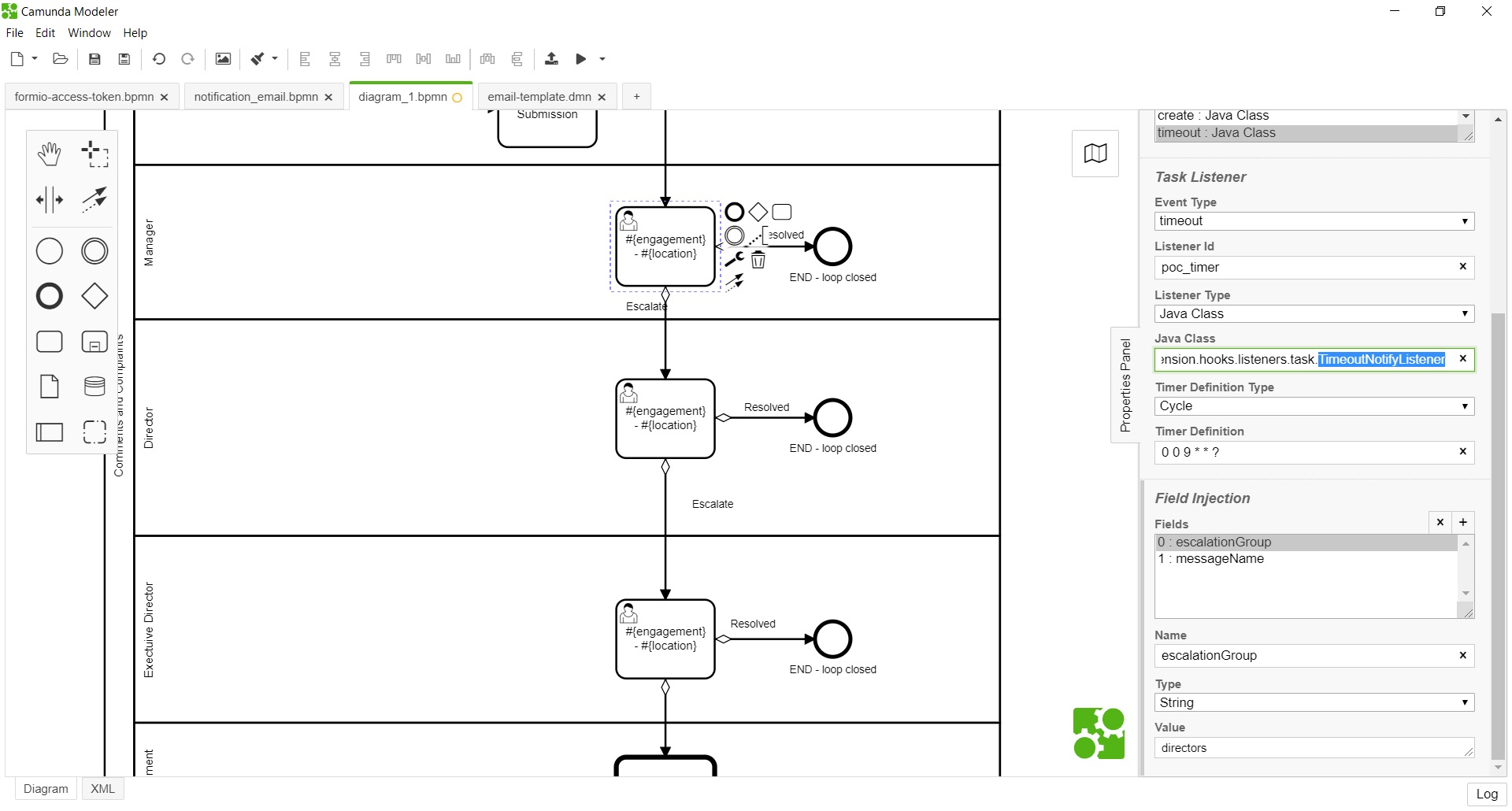

Timeout Notification listener escalationGroup - Snapshot

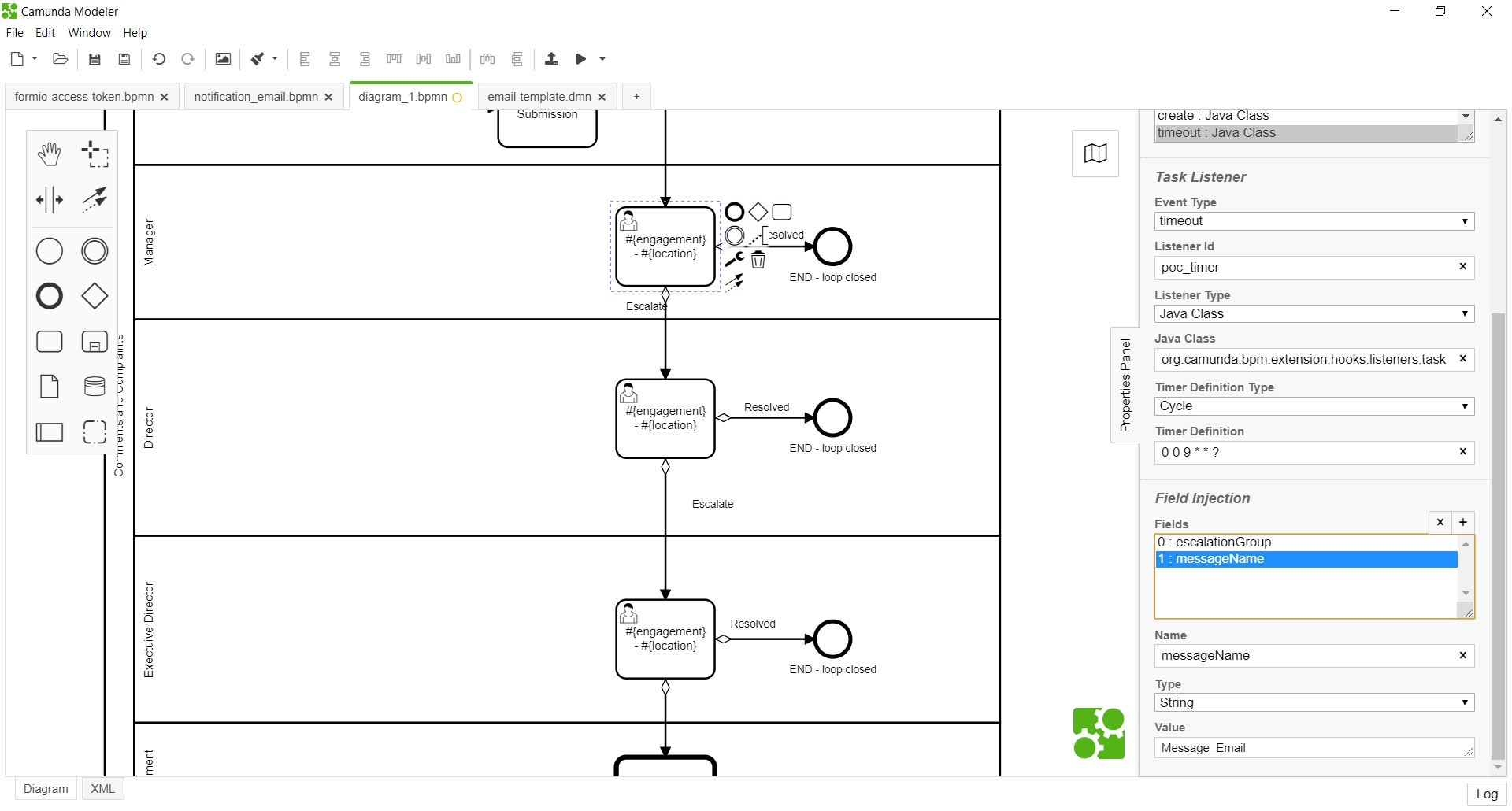

Timeout Notification listener messageName - Snapshot
