Form Connector Listener

Java Class​

org.camunda.bpm.extension.hooks.listeners.task.FormConnectorListener

This listner is used on the CREATE event of a task listener to associate a form with a task. It is required only when switching to a new form during navigation from the initially submitted form.

Type​

Task Listener

How It Works​

The listener relies on the following parameters:

(1) formName (name: formName, type: expression, value: name of the form, Mandatory = Yes ) (2) copyDataIndicator (name: copyDataIndicator, type: expression, value: Y or N, Mandatory = No ] When set to Y, it propagates all matching field values from the existing formUrl to the new form. (3) fields (name: fields, type: expression, value: Array of variable names(s), Mandatory = Yes ] Specifies Camunda variables as an array (e.g., ["pid","applicationId","task_id"]). These variables are populated into the form. Note: pid is the process instance ID, task_id is the task ID, and applicationId is the application ID. These are essential for forms associated with tasks.

How to Use​

The following snapshots illustrate how to configure the FormConnectorListener to a task:

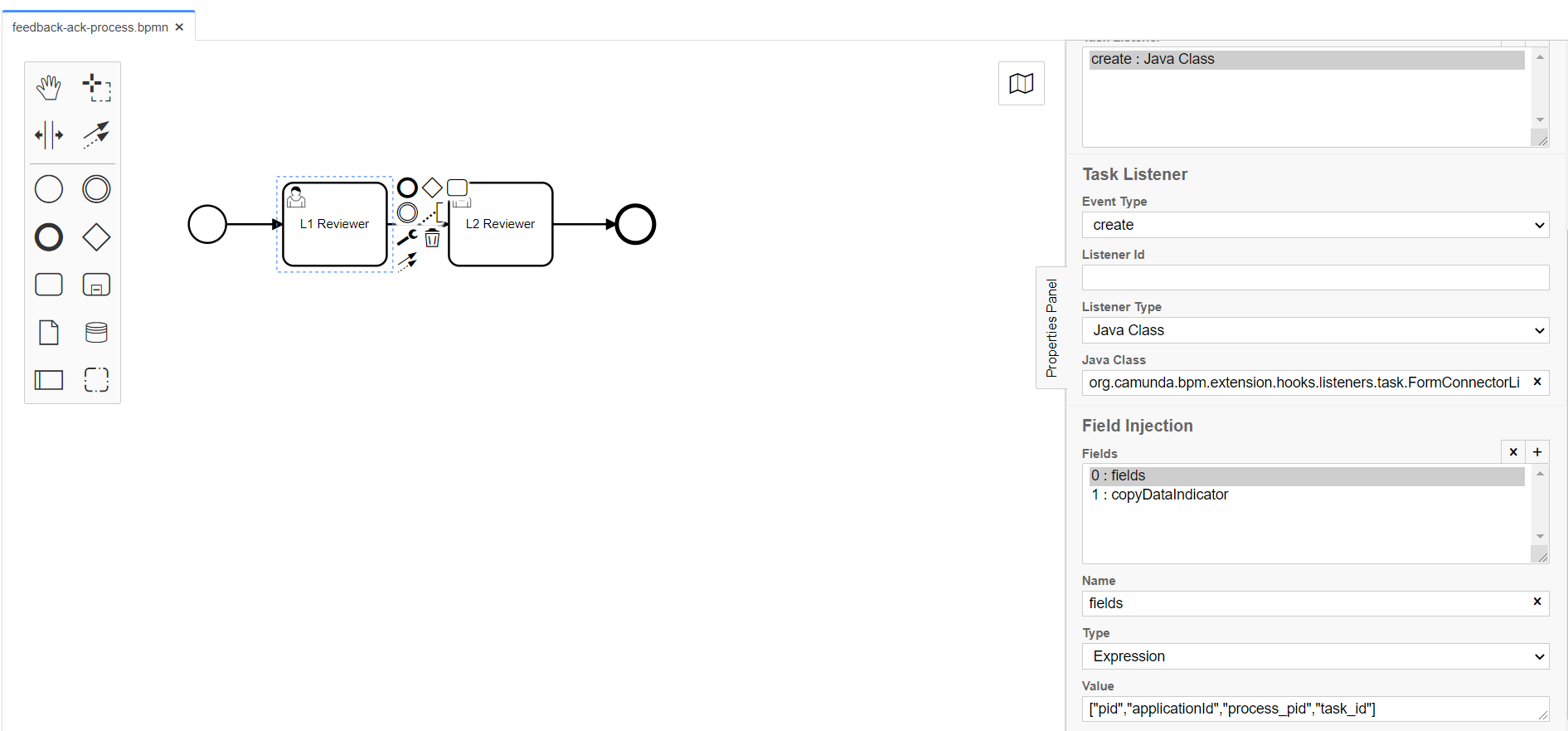

  1. Configuration on Task Creation: Shows the listener configured on the CREATE event with fields set to populate task details into the form's metadata fields.

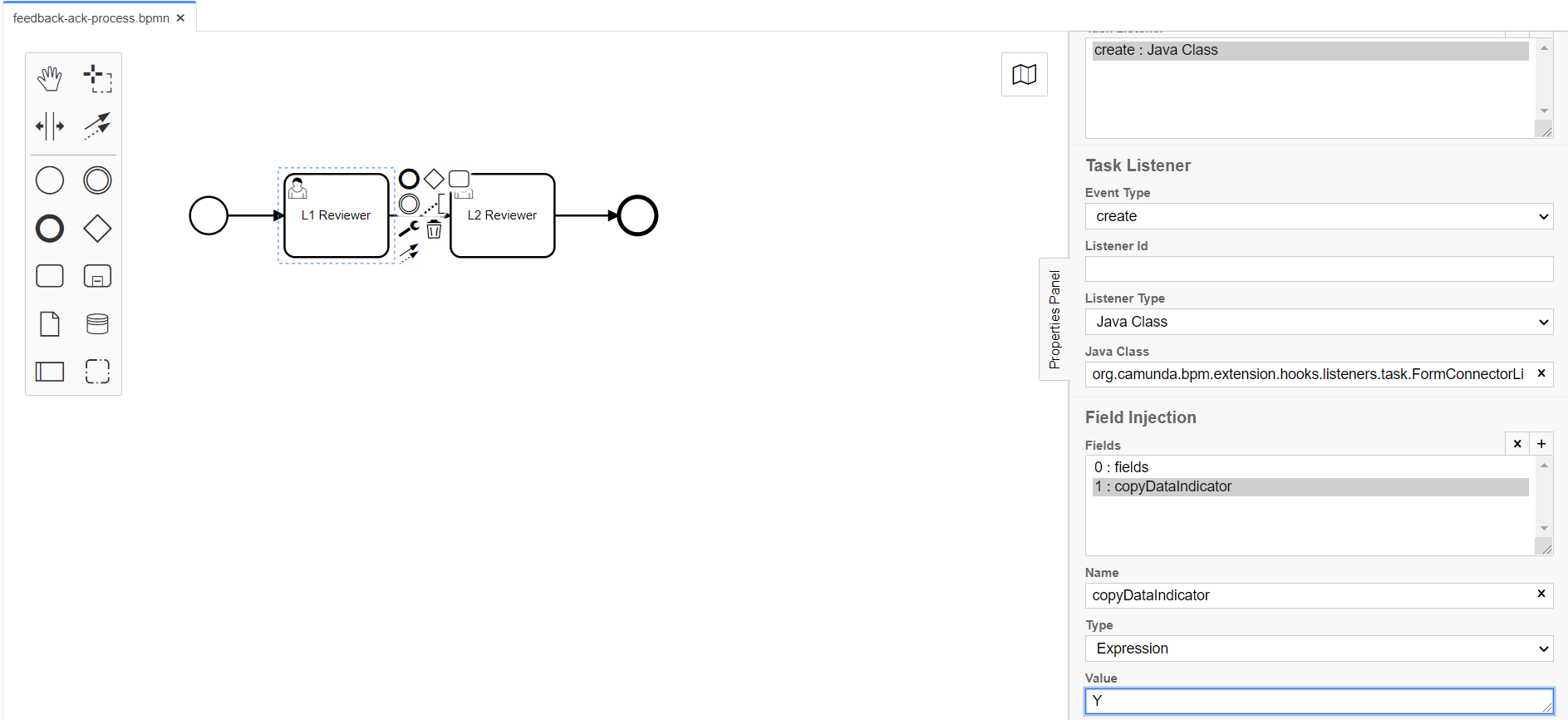

  2. Optional copyDataIndicator Configuration: Demonstrates the optional copyDataIndicator set to copy data from an existing submission to a new one.
