BPM Form Data Pipeline Listener

---

Java Class

org.camunda.bpm.extension.hooks.listeners.BPMFormDataPipelineListener

This Listener can be used on any task or execution listener event. Upon configuration, it copies Camunda variables value to form fields with the same name.

Type

Task/Execution Listener

How It Works

The listener prepares data from Camunda variables for Formio submission and invokes the Formio REST-based submission endpoint to update the form data.

Parameters

(1) fields (name: fields, type: expression, value: Array of variable names(s), Mandatory = Yes ) Specifies Camunda variables as an array (e.g., ["pid","applicationId","task_id"]). These variables are populated into the form.

How to Use

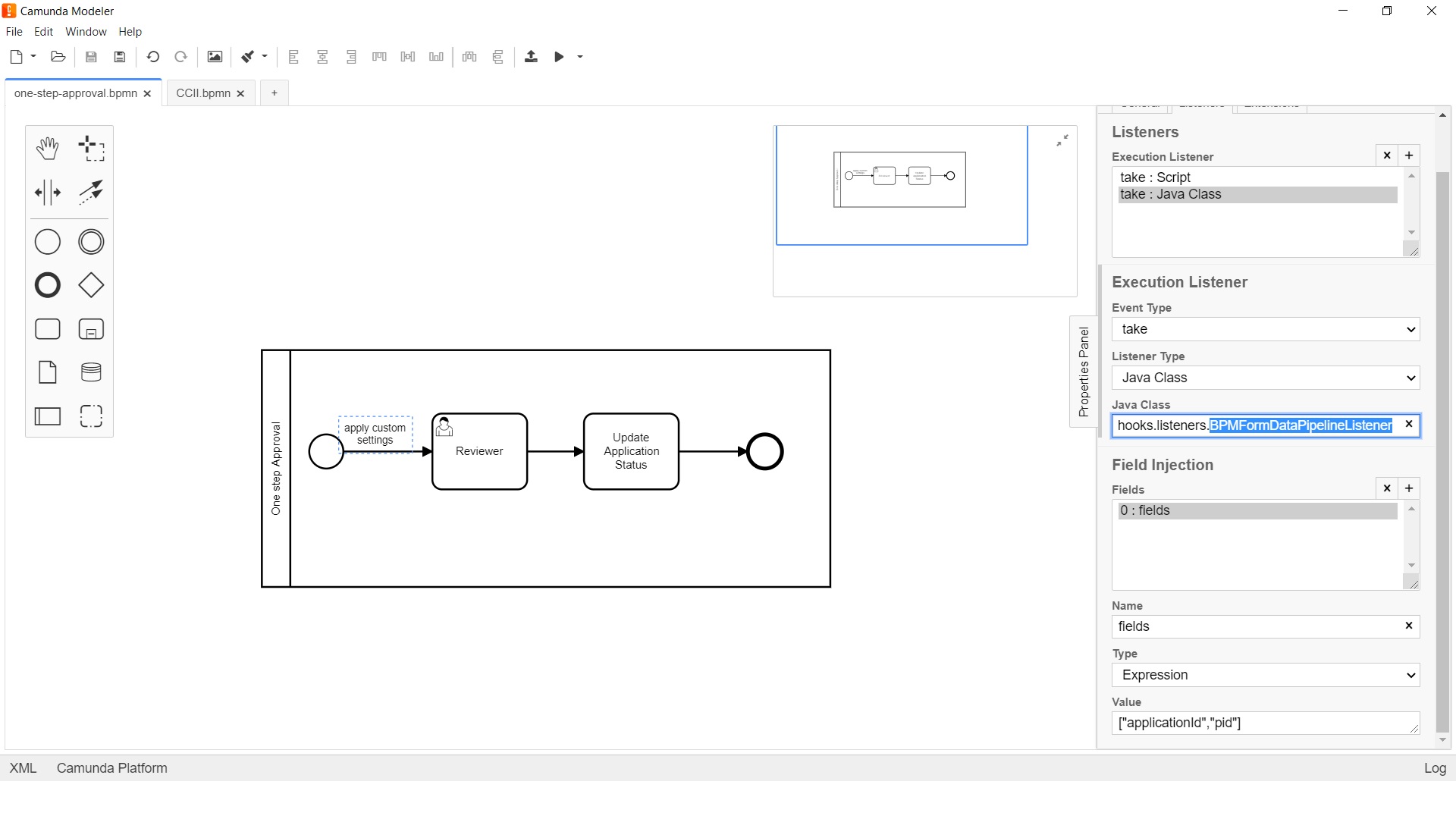

The following snapshot shows how to configure the BPMFormDataPipelineListener to an execution.
