Notify Listener

Java Class​

org.camunda.bpm.extension.hooks.listeners.task.NotifyListener

This listener can be used on the CREATE event of a task listener. It sends an email upon task creation to members of the candidate groups and optionally to members of emailGroups.

Type​

Task Listener

How it Works​

This component relies on the following listener field parameters (type: expression):

(1) messageId (name: messageId, type: expression, value: name of messaga, Mandatory = Yes ) messageId is the name of the message used for your email notification process

(2) category (name: category, type: expression, value: category value, Mandatory = Yes ) category is the input parameter used in the email tempalate DMN which is used email notification process

(3) groupsOnly (name: groupsOnly, type: expression, value: number of days, Mandatory = Yes ) If set, this flag ensures the email is sent only to emailGroups

(4) emailGroups (name: emailGroups, type: expression, value: number of days, Mandatory = No ) An array of email group names (e.g., ["ADMO","ED-Operations"]).

How to Use​

The snapshots below show how to configure the NotifyListener for a task.

NotifyListener being configured on task creation with message event details:​

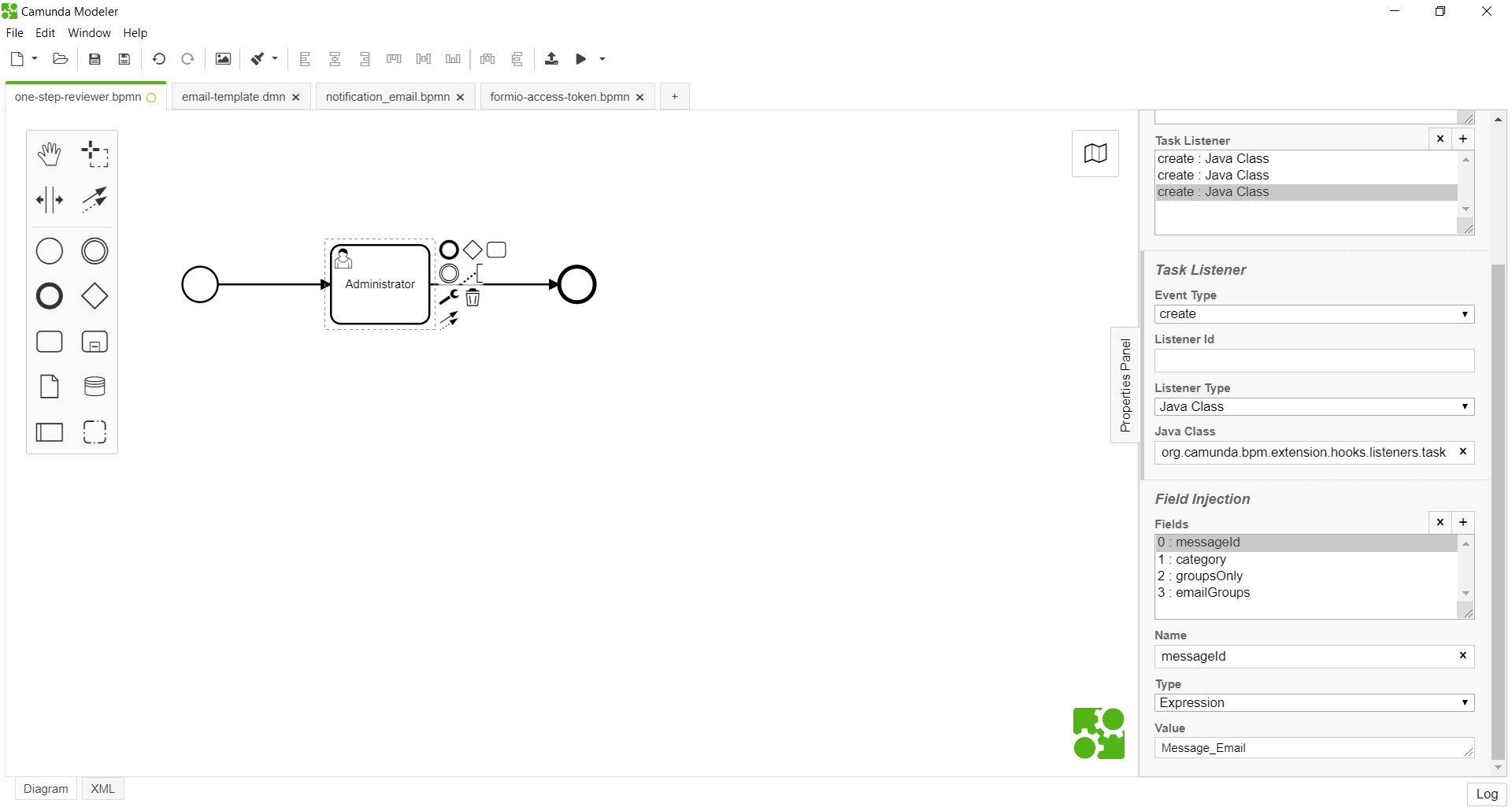

Notify listener (messageId) - Snapshot

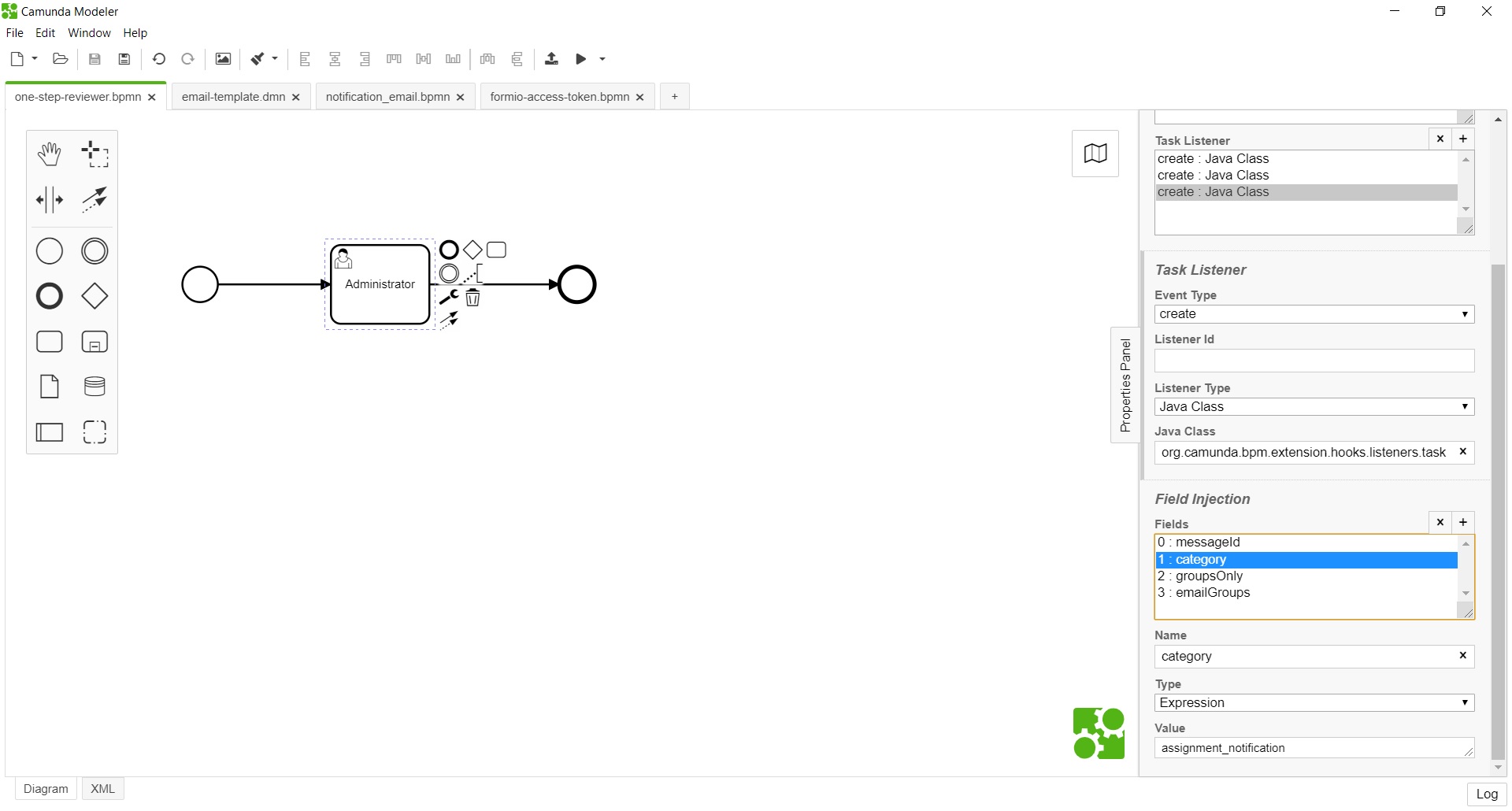

Notify listener (category) - Snapshot

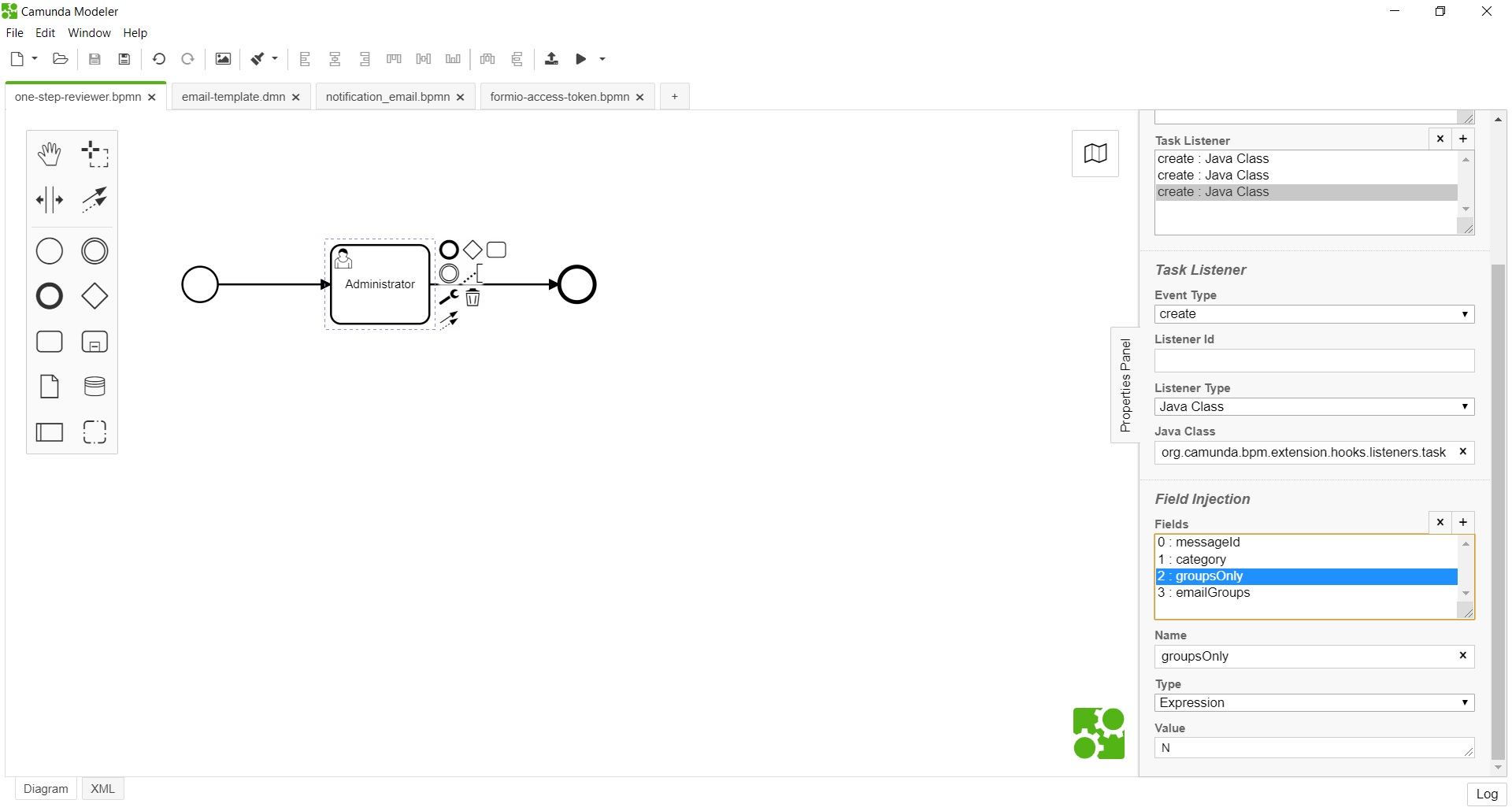

Notify listener (groupsOnly) - Snapshot

Below snapshot shows the configuration of the optional parameter (emailGroups):​

Notify listener (emailGroups) - Snapshot
