Export Form as PDF

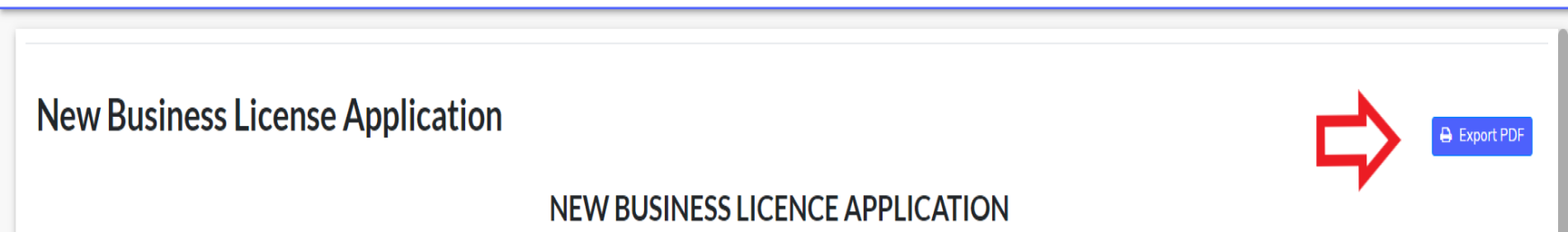

This feature enables users to export forms with submitted data as a PDF from the UI. Users will have an “Export PDF” button in form view pages to click and get the form downloaded as a PDF in the browser itself.



API Details​

API URL: <form-flow-webapi-server>/form/<form-id>/submission/<submission-id>/export/pdf

Optional params:

timezone: A parameter to render form based on client timezone or any custom timezone.

Example: <form-flow-webapi-server>/form/<form-id>/submission/<submission-id>/export/pdf?timezone=Asia/Calcutta

API Method: GET

API Response: Will be a blob response that can be used by the client to save it as a PDF.

This feature requires the following prerequisites for running locally without Docker:

  1. A Chrome installation and its driver are required to render this form and print it as a PDF in headless mode on the server side.

Chrome driver path can be provided via environment variable like below:

In Windows:

CHROME_DRIVER_PATH=C:\driver\chromedriver.exe

In Linux:

CHROME_DRIVER_PATH=/usr/local/bin/chromedriver

If not given, the default value will be /usr/local/bin/chromedriver.

Installation of Chrome and ChromeDriver​

Forms flow Docker images already contain code to install the latest Chrome and its ChromeDriver as shown below:

# Install Chrome WebDriver
RUN CHROMEDRIVER_VERSION=`curl -sS chromedriver.storage.googleapis.com/LATEST_RELEASE` && \
    mkdir -p /opt/chromedriver-$CHROMEDRIVER_VERSION && \
    curl -sS -o /tmp/chromedriver_linux64.zip http://chromedriver.storage.googleapis.com/$CHROMEDRIVER_VERSION/chromedriver_linux64.zip && \
    unzip -qq /tmp/chromedriver_linux64.zip -d /opt/chromedriver-$CHROMEDRIVER_VERSION && \
    rm /tmp/chromedriver_linux64.zip && \
    chmod +x /opt/chromedriver-$CHROMEDRIVER_VERSION/chromedriver && \
    ln -fs /opt/chromedriver-$CHROMEDRIVER_VERSION/chromedriver /usr/local/bin/chromedriver

# Install Google Chrome
RUN curl -sS -o - https://dl-ssl.google.com/linux/linux_signing_key.pub | apt-key add - && \
    echo "deb http://dl.google.com/linux/chrome/deb/ stable main" >> /etc/apt/sources.list.d/google-chrome.list && \
    apt-get -yqq update && \
    apt-get -yqq install google-chrome-stable && \
    rm -rf /var/lib/apt/lists/*

# Set display port to avoid crash
ENV DISPLAY=:99

The export feature can be enabled for formsflow.ai web by enabling the following environment variables:

# To enable export feature in UI
REACT_APP_EXPORT_PDF_ENABLED=true

# URL of Python document service
REACT_APP_DOCUMENT_SERVICE_URL=<yourIP:port>
